HN 3DOF Motion Actuator DIY Kit V1
HN 3DOF Motion Actuator DIY Kit V1
Couldn't load pickup availability
HN 3DOF Motion Kit
Experience unparalleled realism with the HN 3DOF Motion Kit, an industrial-grade simulator system designed to elevate your racing or flight simulation experience.
Updated Assembly Process – Hands-On Experience!
To give customers a better understanding of how their motion system works, the HN 3DOF Motion Kit will now be supplied in a partially assembled state. Customers will be responsible for assembling the cabinet, servo controllers, and wiring themselves.
This approach allows you to: ✅ Gain hands-on experience with your motion system. ✅ Learn how to troubleshoot and maintain your setup. ✅ Customize wiring and layout to best fit your rig.
HN Motion’s 3DOF Motion Kit is a premium alternative to SFX-100 and eRacing Lab, offering industry-grade components, local support, fast shipping, and a solid warranty—built for serious sim racers in Australia.
All necessary components, wiring diagrams, and assembly guides will be provided to ensure a smooth and straightforward setup process. Plus, our team is available for support if needed!
Enjoy a deeper connection with your racing simulator by building and understanding it from the ground up!
Key Features:
- Industrial-Grade Actuators: Built with precision-engineered components, including NSK bearings and TBI ball-bearing screws (10mm/rev), for smooth and quiet operation.
- Silent Servo Motors: Advanced silent servo motors ensures a fully immersive experience without distractions.
-
Thanos Motion Controllers:
- Choose between two types of motion controllers:
- Thanos4U: Supports up to 4 axes, ideal for a standard 3DOF setup.
- ThanosAMC: Supports up to 7 axes, offering room for future upgrades, including Traction Loss, Surge, Belt Tensioners, and more.
- For those with larger setups, two Thanos4U controllers can be combined to manage up to 8 axes, delivering ultimate flexibility for advanced configurations.
- Choose between two types of motion controllers:
- Exceptional Power & Travel: Each actuator delivers 125kg of pushing power with a total travel distance of 150mm, ensuring dynamic movement across pitch, roll, and heave.
- Weight Capacity: The kit supports maxium weight rating of up to 300kg, accommodating a wide range of cockpit setups and users.
- Enhanced Durability: Designed to withstand rigorous use, making it a reliable solution for serious sim enthusiasts.
Software Requirements
To operate the HN 3DOF Motion Kit, you’ll need compatible motion software. We recommend SimHub Motion and SimRacingStudio (SRS), both of which provide advanced motion tuning, real-time telemetry integration, and customizable profiles for a seamless racing or flight simulation experience. Please note that a separate license purchase is required for these software solutions. This ensures full access to all motion features and customization options, allowing you to fine-tune the system to your preferences.
Whether you're planning your first simulator or envisioning future upgrades, the HN 3DOF Motion Kit offers the flexibility and performance to grow with your needs. Transform your setup into a professional-grade motion system and feel every turn, bump, and twist like never before.
What's in the box:
• 4 x Actuator with Foot
• 4 x Servo Motor + Driver
• 4 x DB25 Cable
• USB Cable
• PDU Power Board
• Controller of your choice
• 4U Cabinet
• Bolts & Nuts
Disclaimer:
- The HN 3DOF Motion Kit must be used in a safe and controlled environment, free from obstructions, and with appropriate safety precautions in place.
- Customers use this product at their own risk. Improper installation, configuration, or use can result in damage to equipment or personal injury.
- The system includes moving mechanical parts that can pose a risk of injury if not handled properly. Keep hands, fingers, and objects away from actuators and other moving components during operation.
- The maximum safe weight rating for the system is 300kg (including the user and cockpit setup). Exceeding this limit may lead to mechanical failure or safety hazards.
- This product is intended for simulation purposes only. The manufacturer is not responsible for damage or injury resulting from misuse, modification, or failure to follow instructions.
- Instruction (HN 3DOF Motion Kit): https://cdn.shopify.com/s/files/1/0887/7686/8120/files/HN_3DOF_Motion.pdf?v=1739094971
Share

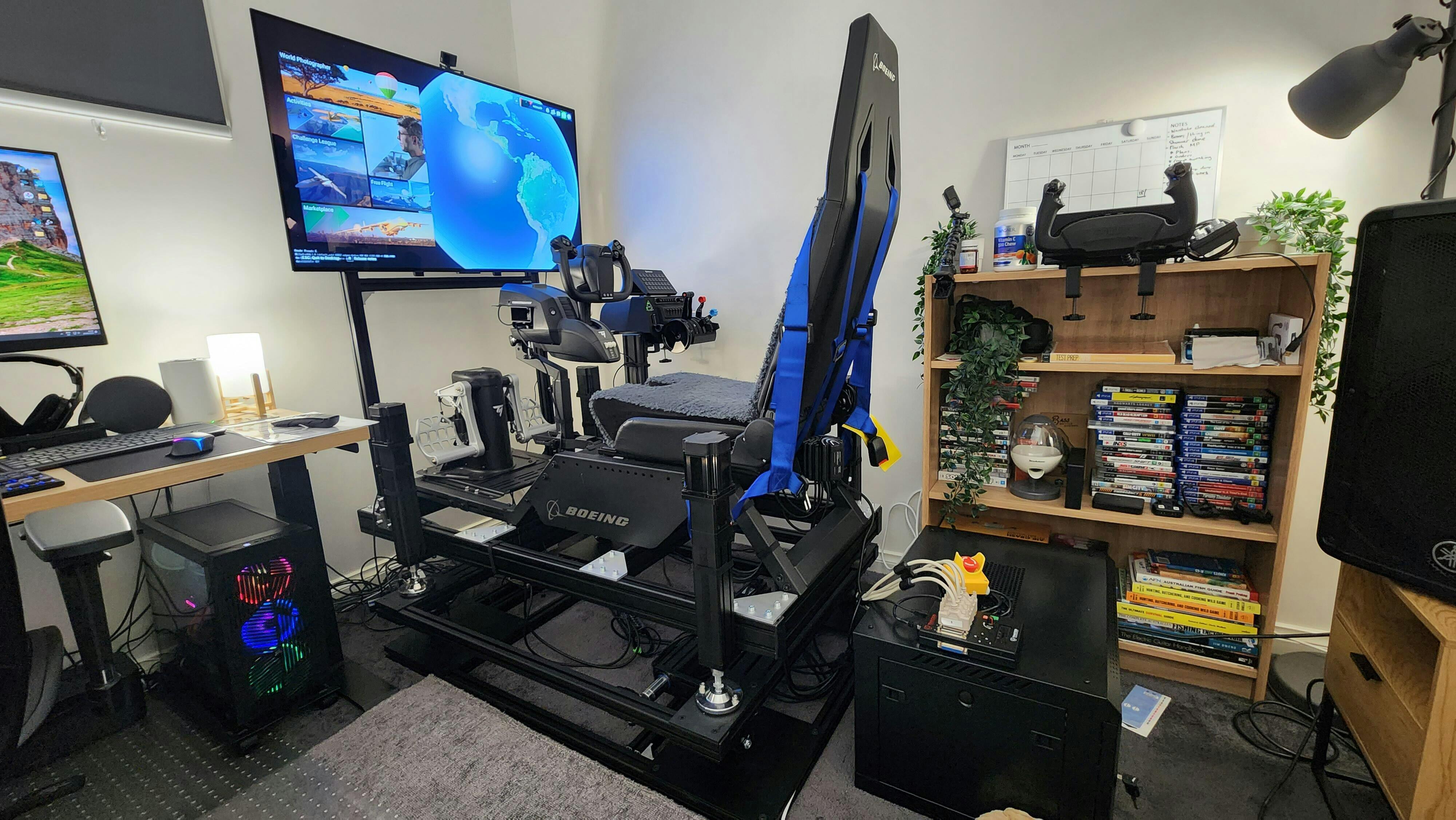

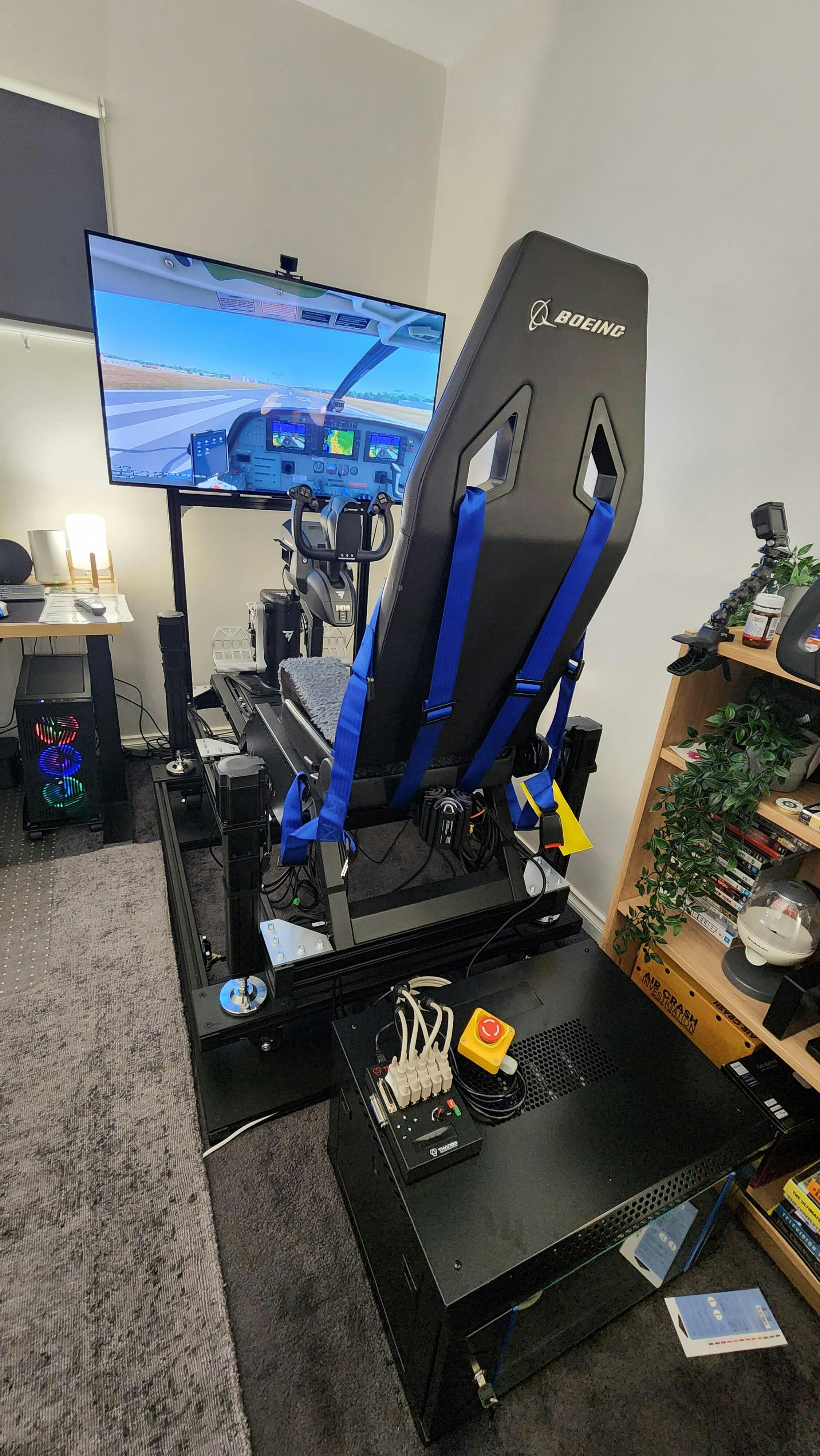

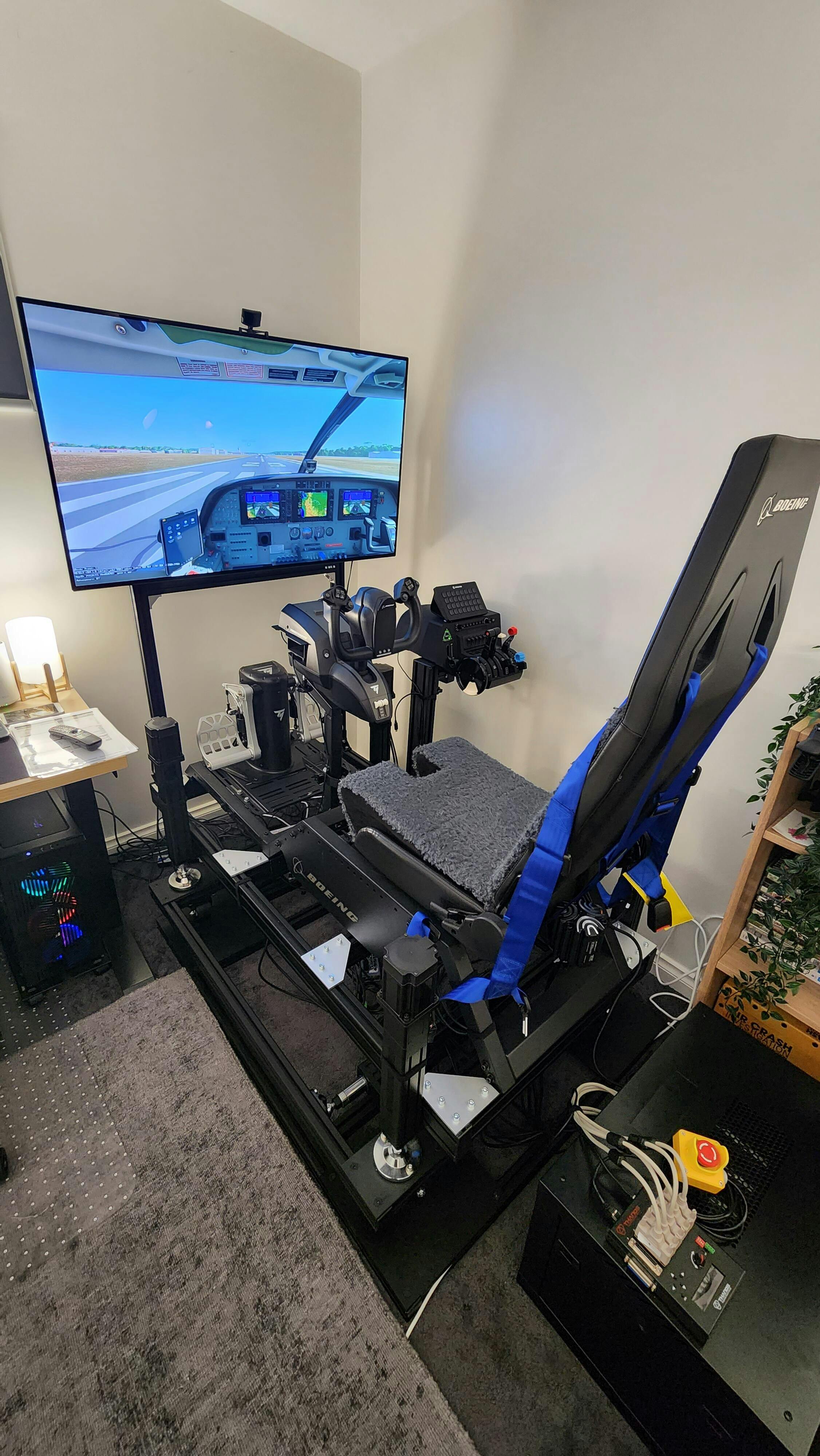

I purchased the HN Motion 3DOF kit with traction loss a few months ago to take my flight simulation setup to the next level. I had a great time assembling the rig, and after using it for a few weeks now, I can confidently say it’s a fantastic piece of equipment.
The setup process was well supported by concise video tutorials and clear written documentation. That said, I’d suggest this kit is best suited to those who enjoy a bit of lateral thinking—but I suspect most people looking into motion platforms would be up for the challenge.
The unit’s motion is impressively responsive and fits my needs perfectly. It also runs quietly, which is a bonus.
As I’m based in Melbourne, and luck had it I lived nearby, a member of Hugo’s team personally dropped off the unit before a long weekend so I could get started—an exceptional level of customer service that’s rare these days. While not everyone should expect this, it really highlights their eagerness to support customers and go the extra mile.
Throughout the process, I reached out to Hugo via email for advice, and he consistently responded quickly with helpful information and practical solutions to the minor issues I encountered. I also purchased some extra parts to complete elements of the rig that weren’t included, and Hugo and I negotiated what I felt was a very fair price for items that can be a bit tricky to source on short notice—things like connectors and T-bolts, for example.
I wouldn’t hesitate to recommend these products to any type of simmer—it’s the most fun I’ve had in years setting it up and using it.
Big thanks to Hugo and the team!
Works flawlessly. Near silent. Excellent piece of kit.
Customer service from Hugo was top notch!
These kits are great quality and have been clearly thought out to be practically plug & play.
Any questions I had were promptly answered by Hugo!
5 stars!
Came across these and decided to take the plunge as the equivalent kits were north of $10k delivered. Happy to say I was surprised when set up just how precise and powerful they are and cant fault them or Johnson and his support late at night getting me set up step by step. Customer service 10/10 Product 10/10 delivery 10/10.
If you are considering then do it.
