HN Motion DTL-S Platform – Dual Traction Loss & Surge Motion Base

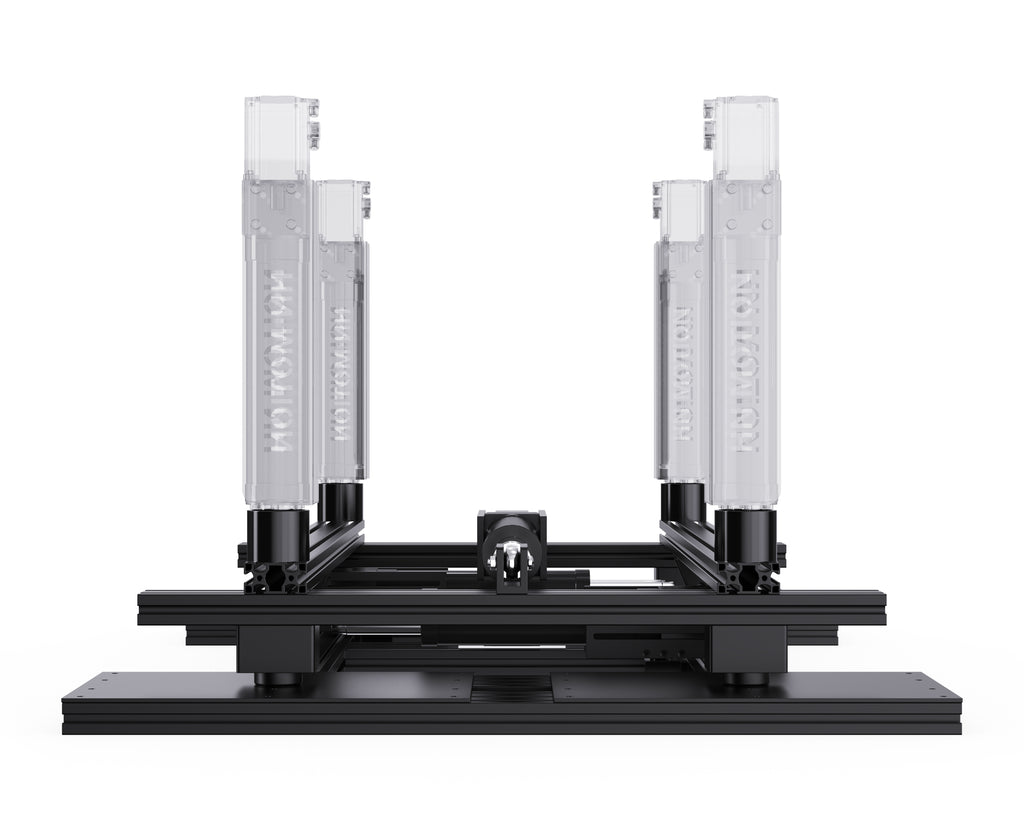

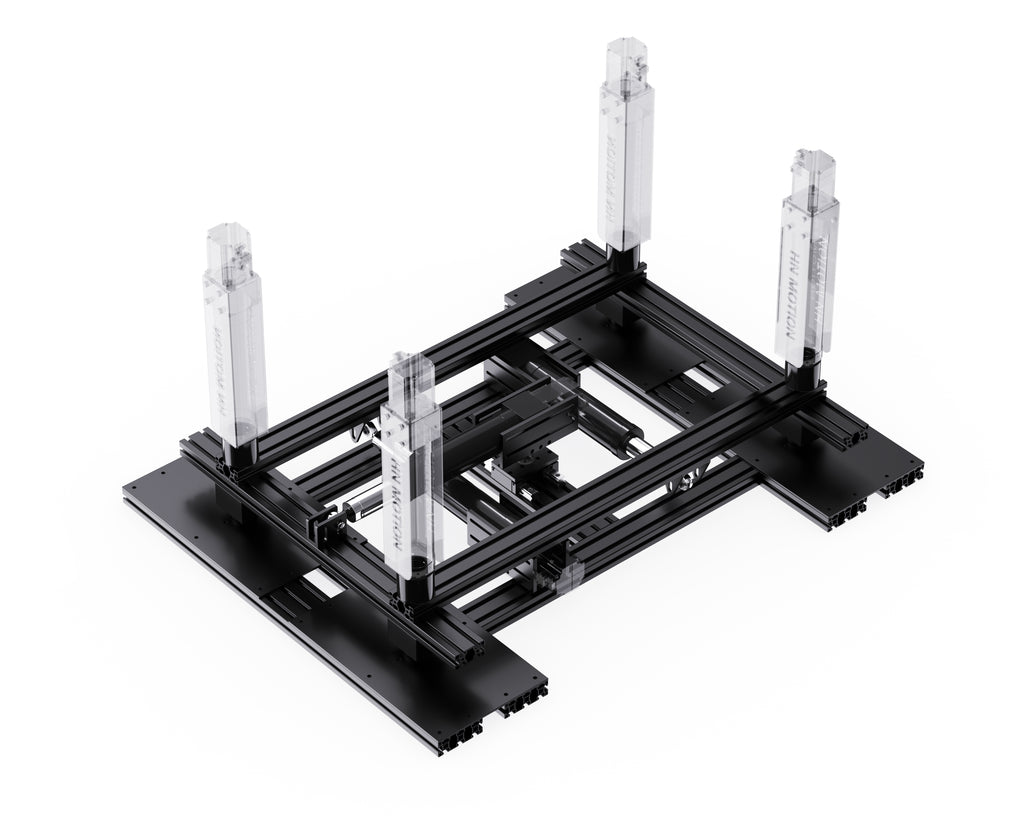

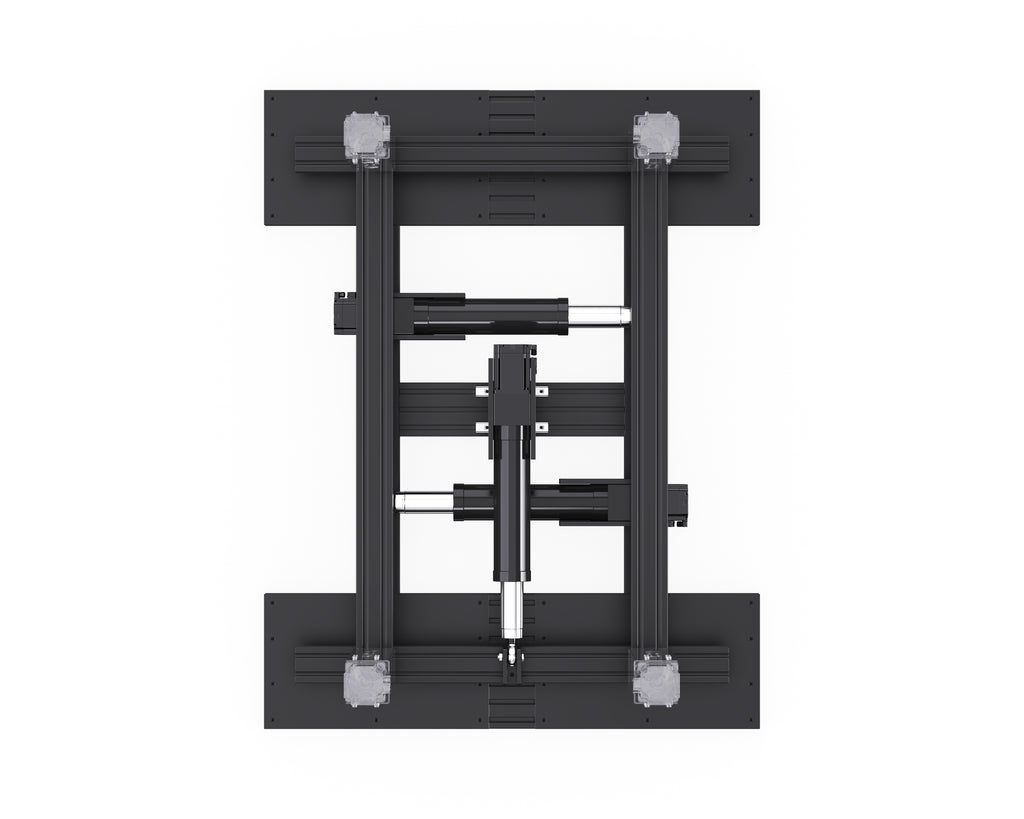

The DTL-S Platform is a compact 3DOF motion base designed to provide yaw, sway and surge using three of our standard actuators.

Each actuator has 150 mm total travel, with the system configured to use 100 mm working stroke, which is more suitable for this type of motion and allows faster response with good control.

Footprint (static):
1420 mm (L) × 1100 mm (W)
(not including the space required during motion)

Maximum supported moving mass:
400 kg

Technical Specifications

• Speed: 250 mm/s
• Ball screw: 2505
• Total actuator travel: 150 mm
• Working stroke: 100 mm

What These 3DOF Do

Yaw (traction loss)
Reproduces rear grip breakaway and rotation of the car.
You can feel when the rear starts to step out, making it easier to catch slides, control drifting, and understand the limit of the tyres.

Sway (lateral movement)
Moves the rig left and right to simulate cornering forces and weight transfer.
This gives a clearer sense of direction changes, vehicle balance, and how quickly the load builds up in a turn.

Surge (longitudinal movement)
Provides forward and backward motion under acceleration and braking.
Helps with braking consistency, throttle control, and feeling the car’s pitch without relying only on visual cues.

For Sim Racing

Together these three axes improve:

• Car control at the limit
• Braking reference and trail braking
• Traction on corner exit
• Catching oversteer earlier
• Overall consistency and immersion

The motion is especially noticeable in low-grip conditions, kerb strikes, and fast direction changes.

For Flight Simulation

The same movements provide useful physical cues for:

• Acceleration and deceleration during take-off and landing
• Runway roll and crosswind correction (yaw + sway)
• Turbulence and side load during approach
• Ground handling and braking after touchdown

Construction

All load-bearing connection components are CNC-machined from T6061 aluminium for high strength, precision and durability.

(Aluminium profile frame mounting brackets are not CNC-machined.)

Basic Kit Includes

• 3 × V2 Actuators
• 3 × Servo motors
• 3 × DB25 signal cables
• 3 × Power cords
• 3 × EMI Filters
• 3 × NSK Rod Bearing
• 2 × Hiwin Rails and Sliders
• 1 × 6U open cabinet
• 1 × PDU
• 4 × Wheel plates
• 4 × Sliding blocks
• 4 × Actuator foot cups
• All required brackets, bolts and nuts

Assembly

This is a self-assembly kit.
All mechanical and electrical components are supplied.

Assembly difficulty: 3.5 / 5
(Requires basic mechanical assembly, frame alignment and electrical wiring)

Assembly guide: https://cdn.shopify.com/s/files/1/0887/7686/8120/files/DTL-S_Instruction.pdf?v=1775557732

Compatibility

Designed for:

• HN Motion 3DOF V1
• HN Motion 3DOF V2

For other systems — contact us.

Shopping List

A detailed shopping list for the extruded aluminium profiles will be provided after the order is placed.

Warranty

1-Year Limited Warranty (Parts Replacement)

Disclaimer

• Use this product at your own risk. Improper installation, configuration, or use may result in equipment damage or personal injury.
• The system contains moving mechanical parts—keep hands, fingers, and objects clear during operation.
• Maximum safe weight: 400 kg (user + cockpit + vertical actuators). Exceeding this limit may cause mechanical failure or safety hazards.
• Intended for simulation purposes only. The manufacturer is not responsible for damage, injury, or accidents resulting from misuse, modification, or failure to follow instructions.
